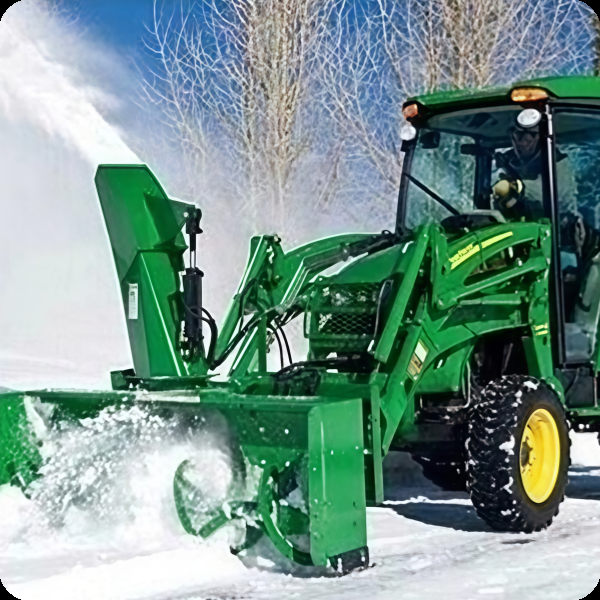

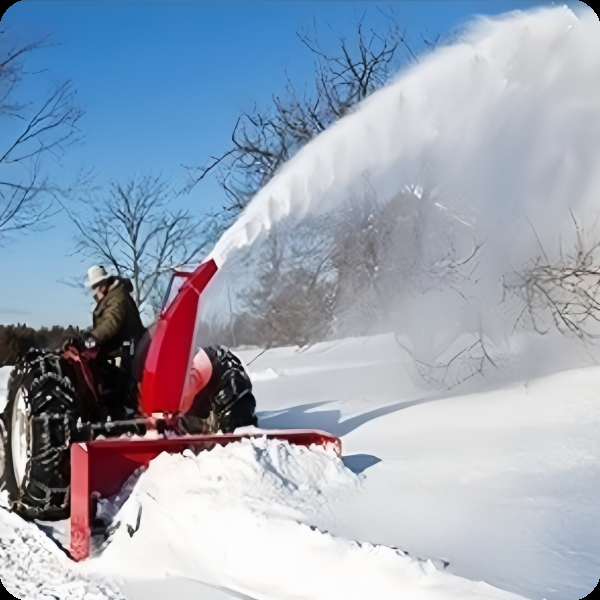

Winter snow clearing equipment for removing snow from farm roads, yards and facility perimeters. Ensures smooth winter transport and safe operation.
Main Features:
Adjustable supporting slider,a protection of the ground.
Flexible design,avoid snow blocking of outlet.
Can blow the snow to the green belt or roadside,or throw the snow onto truck.
Snow Blower is the ideal implement for clearing traffic lanes,sidewalks,yards etc.
Product Parameters
Model | Tractor Front Mounted | CX130 | CX160 | CX180 | CX210 |

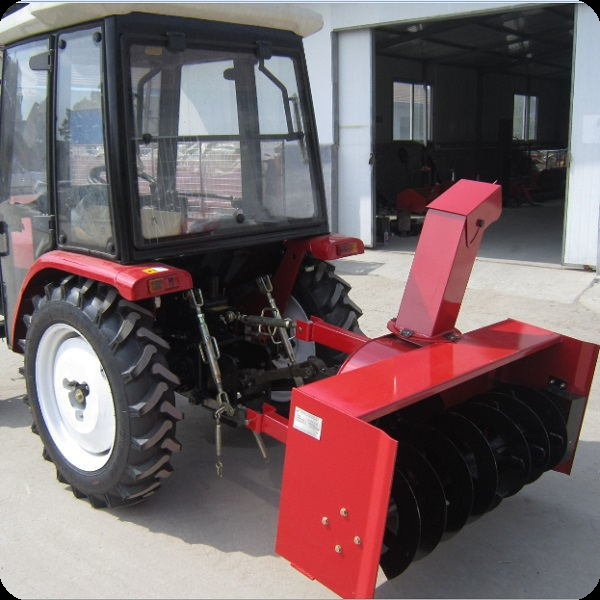

Rear 3-point Hitched | CX130-R | CX160-R | CX180-R | CX210-R | |
For Front 3-point Linkage | CX130-XG | CX160-XG | CX180-XG | CX210-XG | |
For Front End Loader | CX130-TZ | CX160-TZ | CX180-TZ | CX210-TZ | |
Matching Tractor(HP) | 20～40 | 40～60 | 60～90 | 80～120 | |
Blowing Width(MM) | 1300 | 1600 | 1800 | 2100 | |
Blowing Height(MM) | 600 | 600 | 600 | 600 | |
Number of Blades | 4 | 4 | 4 | 4 | |
Dia.of Fan(MM) | 500 | 500 | 500 | 500 | |
Dia.of Feeding Spiral(MM) | 360 | 360 | 360 | 360 | |
Power of Driven Motor(HP) | 15 | 20 | |||
Adjustable Angle of Snow Outlet | 360° | ||||
Adjustable Type of Outlet Direction | Manual Adjustment(Standard) Electric Adjustment(Option) | ||||
Weight(KG) | 200-300 | 220-330 | 240-370 | 260-420 | |
Note：
1.Specifications and engineering designs are subject to change without notification;
2.The specification is for reference only.
